WPM-200 | UHF Wireless In-Ear Audio Monitor System（780-805MHz）

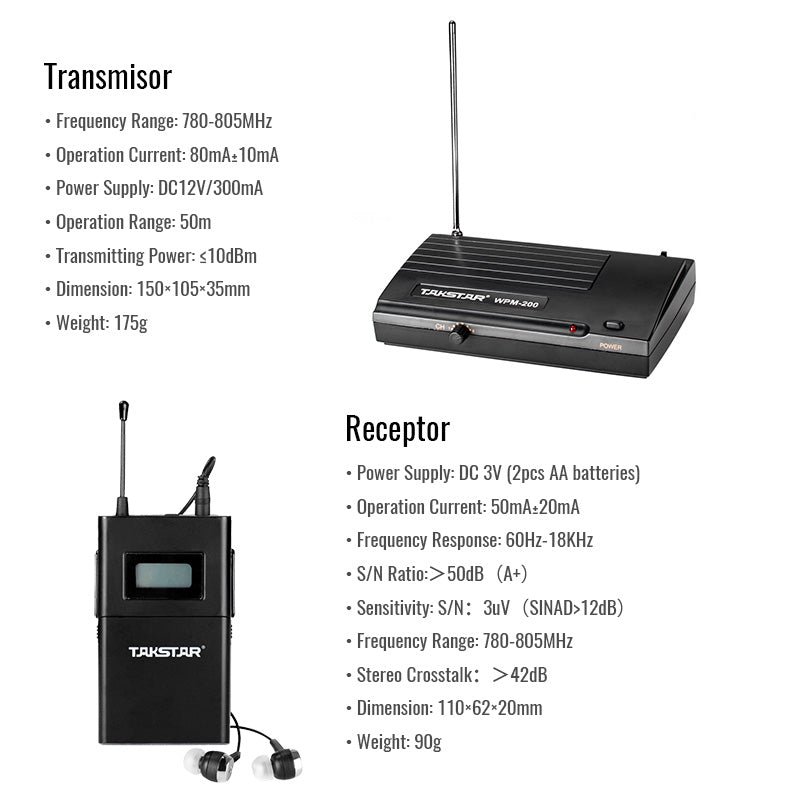

Specifications
Transmitter
Transmitting Frequency: （780-805MHz）
Operation Current: 80mA ± 10mA
Power Supply: DC12V/300mA

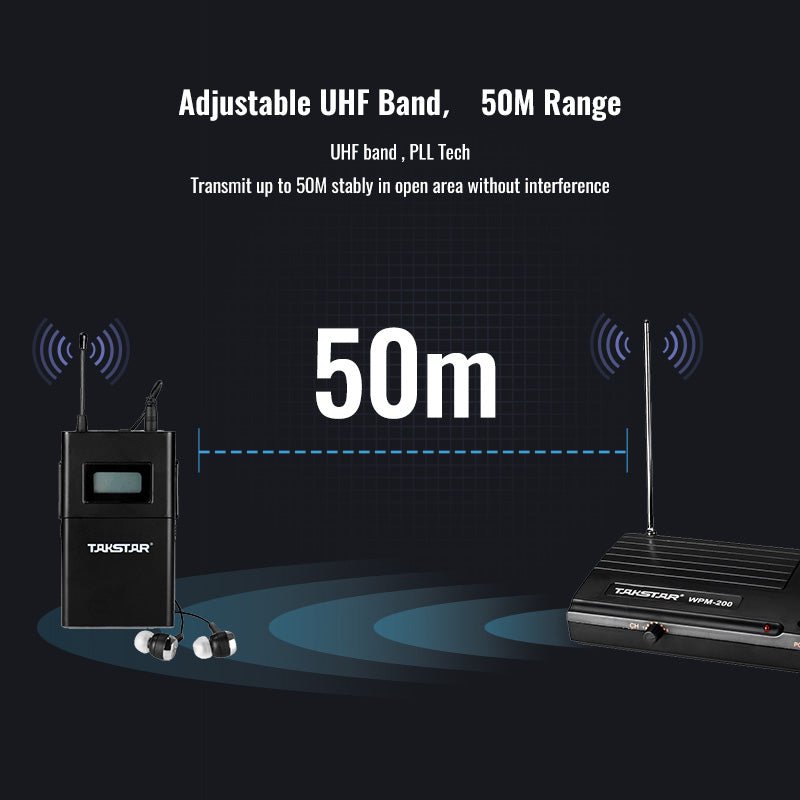

Operation Range: 50m
Transmitting Power: ≤10dBm
Transmitter Size: 150 × 105 × 35mm
Transmitter Weight: 175g

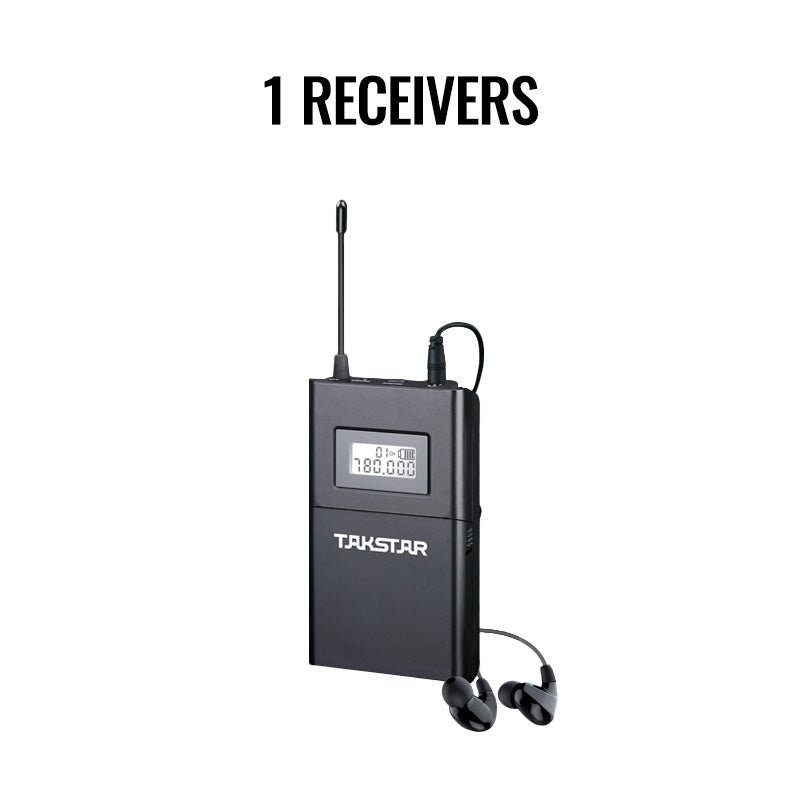

Receiver
Receive Working Voltage: DC3V / two AA batteries
Receive Operating Current: 50mA ± 20mA
Frequency Response: 60Hz-18KHz
Signal To Noise Ratio: >50dB (A+)
Receive Sensitivity: 3uV（SINAD>12dB)
Receiving Frequency Range: 780-805MHz
Stereo Resolution: >42dB
Receiver Size: 110 × 62 × 20mm
Receiver Weight: 90g

• UHF and PLL synthetic technology provide six selectable channels to achieve stable and reliable monitoring performance
• Powered by two AA batteries, low power consumption design for long operation time up to 30 hours
• Dynamic expansion circuitry for high S/N ratio

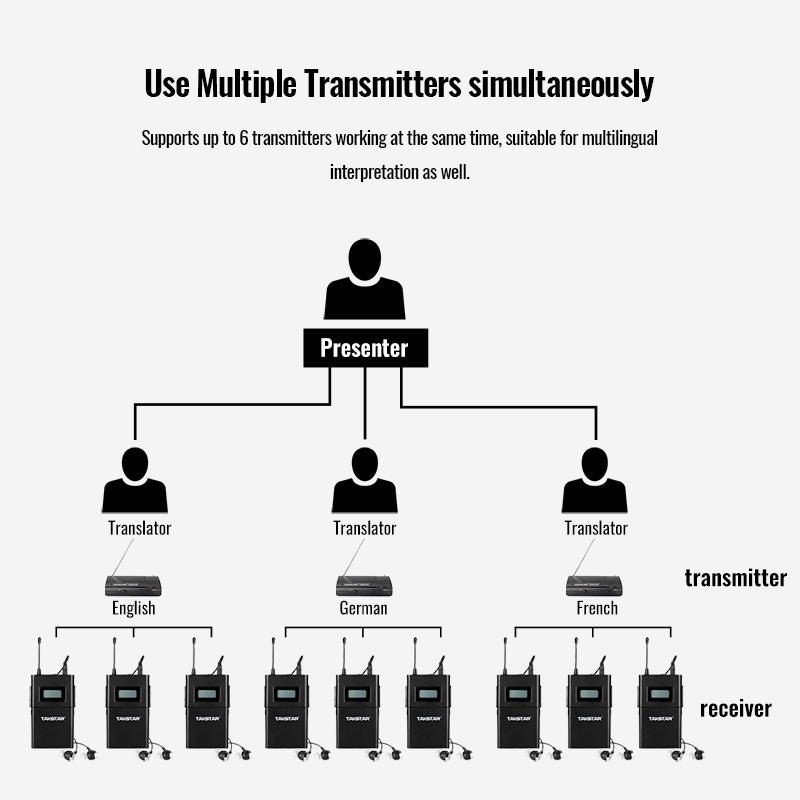

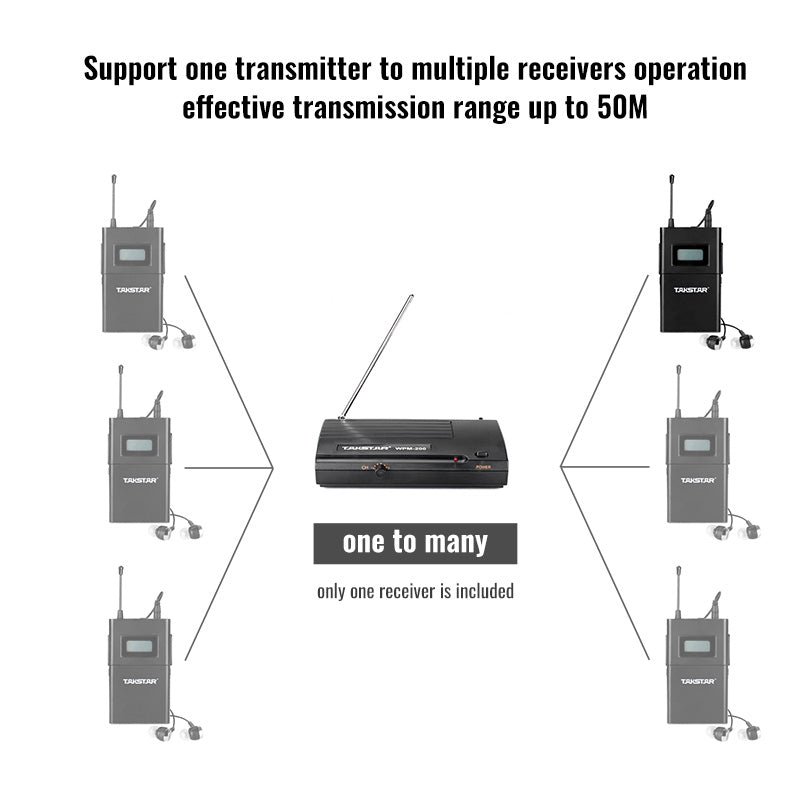

• Multiple receivers can be paired with one transmitter within the 50m operation range
• The complex anti-interference circuit allows 4-6 sets to work at the same time without mutual interference
• Receiver LCD screen displays frequency, channel, and battery power information.

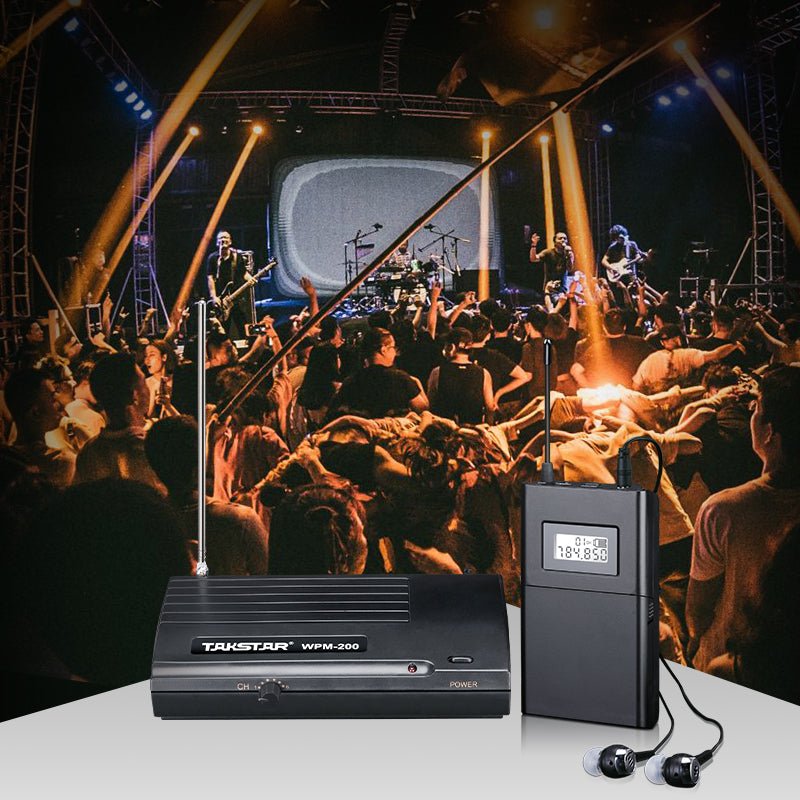

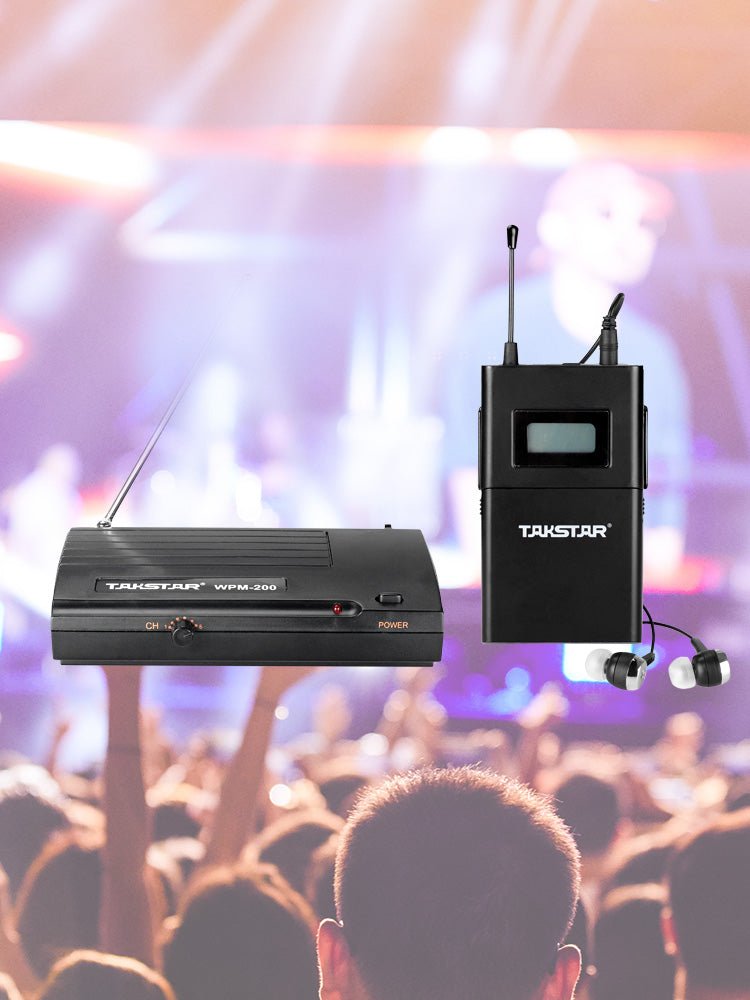

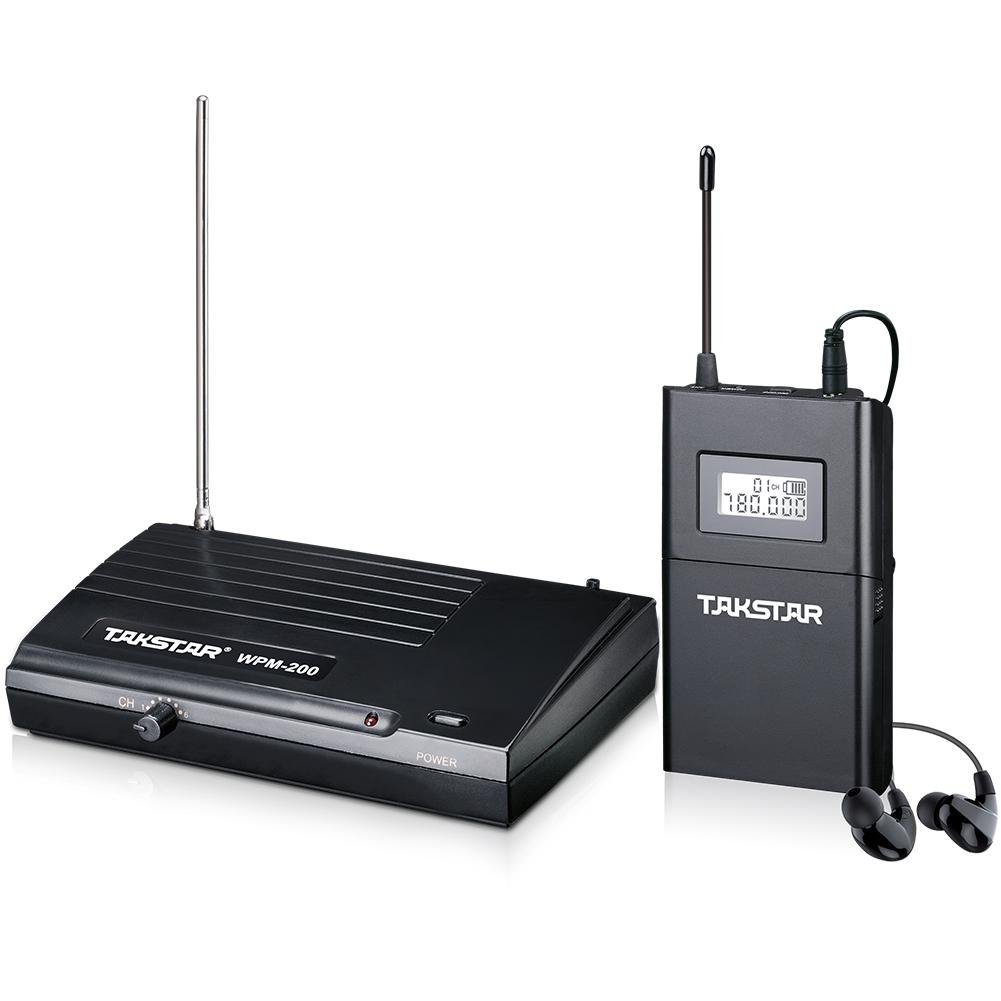

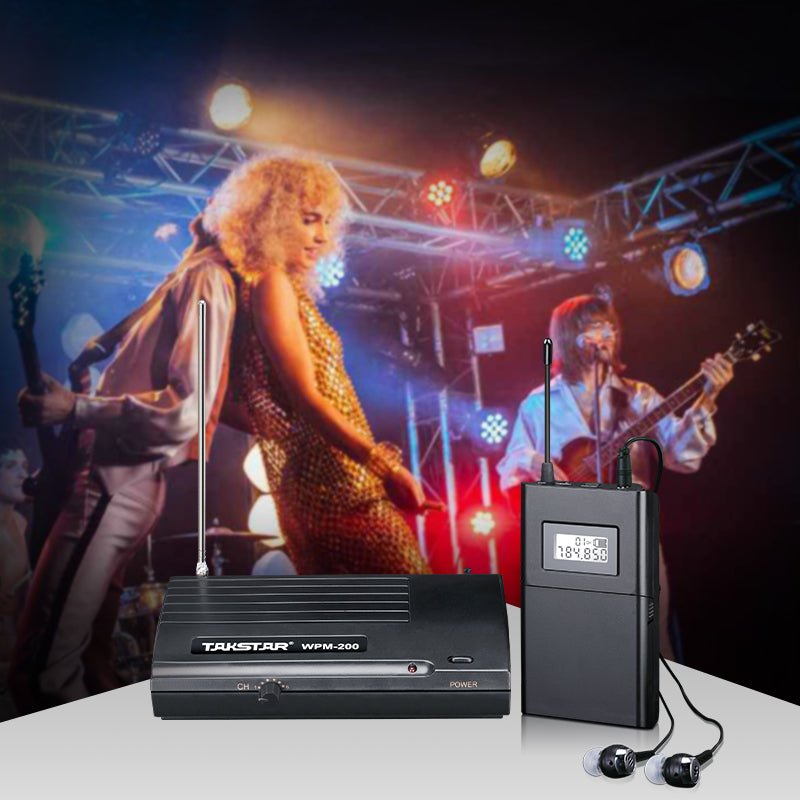

-Takstar wireless monitor system WPM-200 is also known as a set of UHF wireless audio transmission system. The UHF monitor system comes with a pair of TS-2260 monitor earphones, a transmitter, and a receiver. The receiver is powered by two AA batteries and working up to 30 hours. The transmitter works fairly well and produces no delay in live monitoring as long as the received is within the 50 meters operation area.

-The whole set is designed to be light, compact, and portable, allowing motions during audio monitoring. WMP-200 is the ideal monitor system for live performances, on-stage monitoring, studio monitoring, exhibition, lecture and public event audio monitoring.

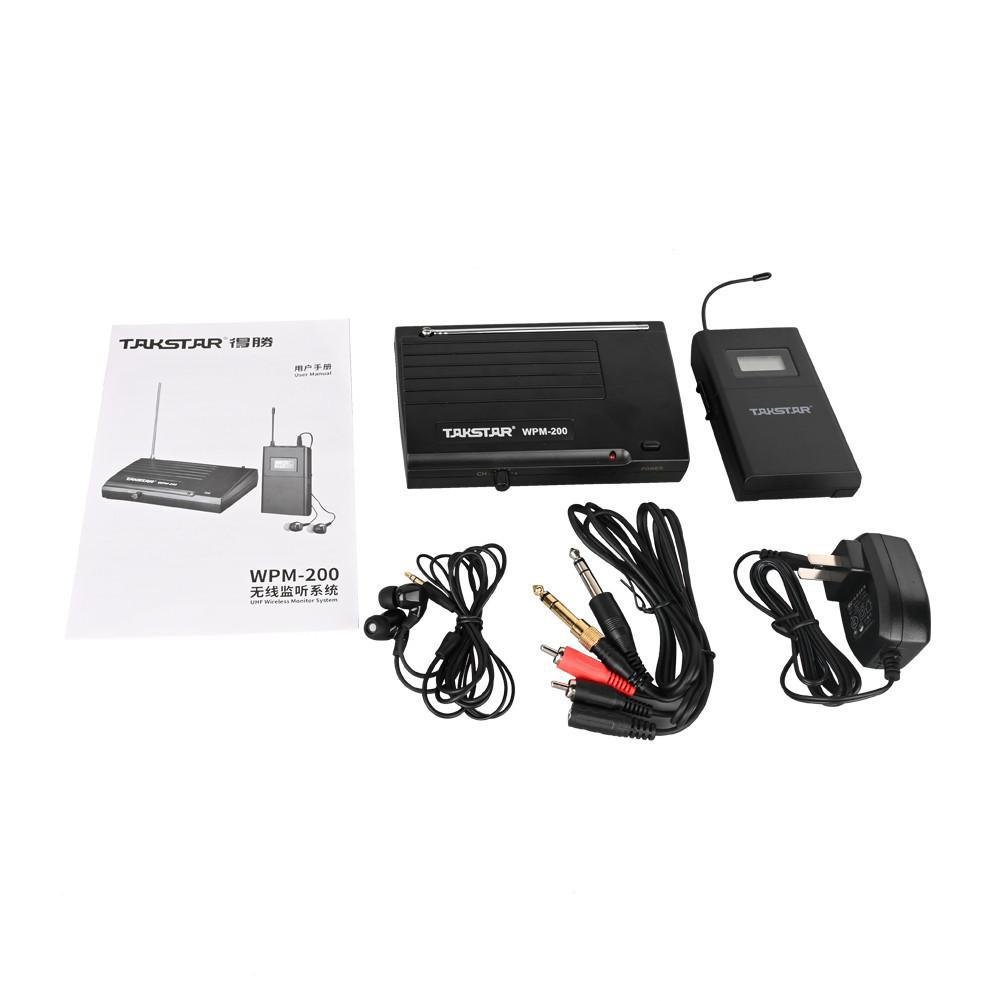

Product Content
1× Receiver
1× Transmitter
1× Earplugs
1× 3.5mm to 6.3mm Plug
1× 3.5mm to 6.3mm Audio Cable
1× 3.5mm to RCA Connecting Cable
1× User Manual
